$376.00 – $648.00
Specifications:

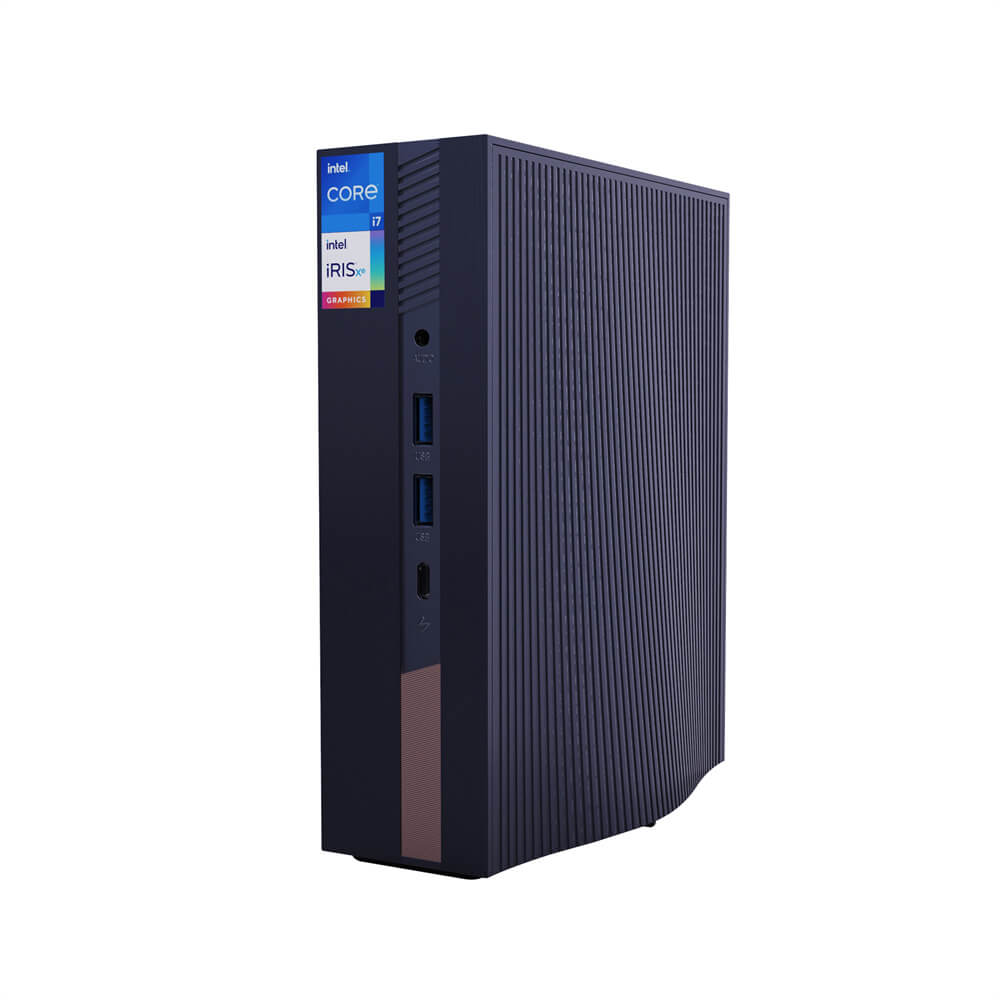

Vertical Design Intel Core i5 Mini PC, built-in with intel Core i5 12450H CPU, with magnetic Cover easy to expand the memory and storage, a high end Mini desktop Computer for multi-task work.
| Appearance | |||
|---|---|---|---|
| Type | Features | Spec | Optional |
| Product | Device | MINI PC | |
| Device size | 183.2mm*150mm*75.5mm | ||
| Matrial | Plastic | ||
| weight | / | ||
| Hardware configuration | |||
| Type | features | Description | Optional |
| CPU | Platform | Intel® Core™ i5-12500H | 12450H/12600H/12700H |
| Speed | 3.30 GHz | ||
| Max frquency | 4.50 GHz | ||
| power disspation | 45W | ||
| Memory | Type | 2*SODIMM DDR4 3200MHz | |
| Storage | MAX 64GB DDR4 3200Mhz | ||
| Storage | EMMC | / | |
| SSD | 1x M.2 (2280) NVME&NGFF for SSD，Max 2TB | ||

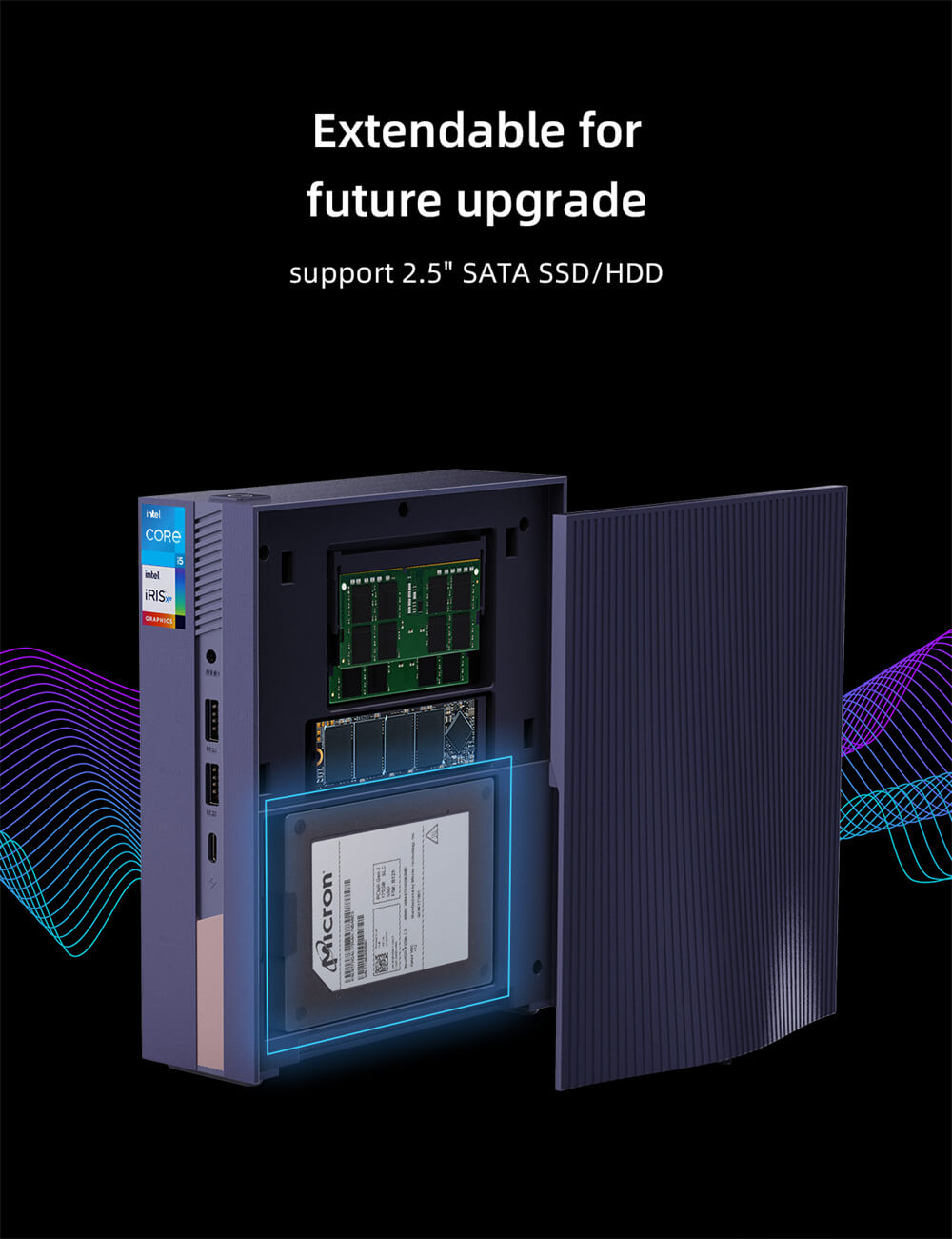

| 2.5 ”SSD | support MAX 2TB | ||
| TF card | / | ||
| RTC | BIOS support | Real-time clock,timing boot | |
| Auto power on | BIOS support | Yes | |
| Diskless network | BIOS support | support uefi no disk startup | |
| TPM | CPU interation | supportTPM 2.0 | |

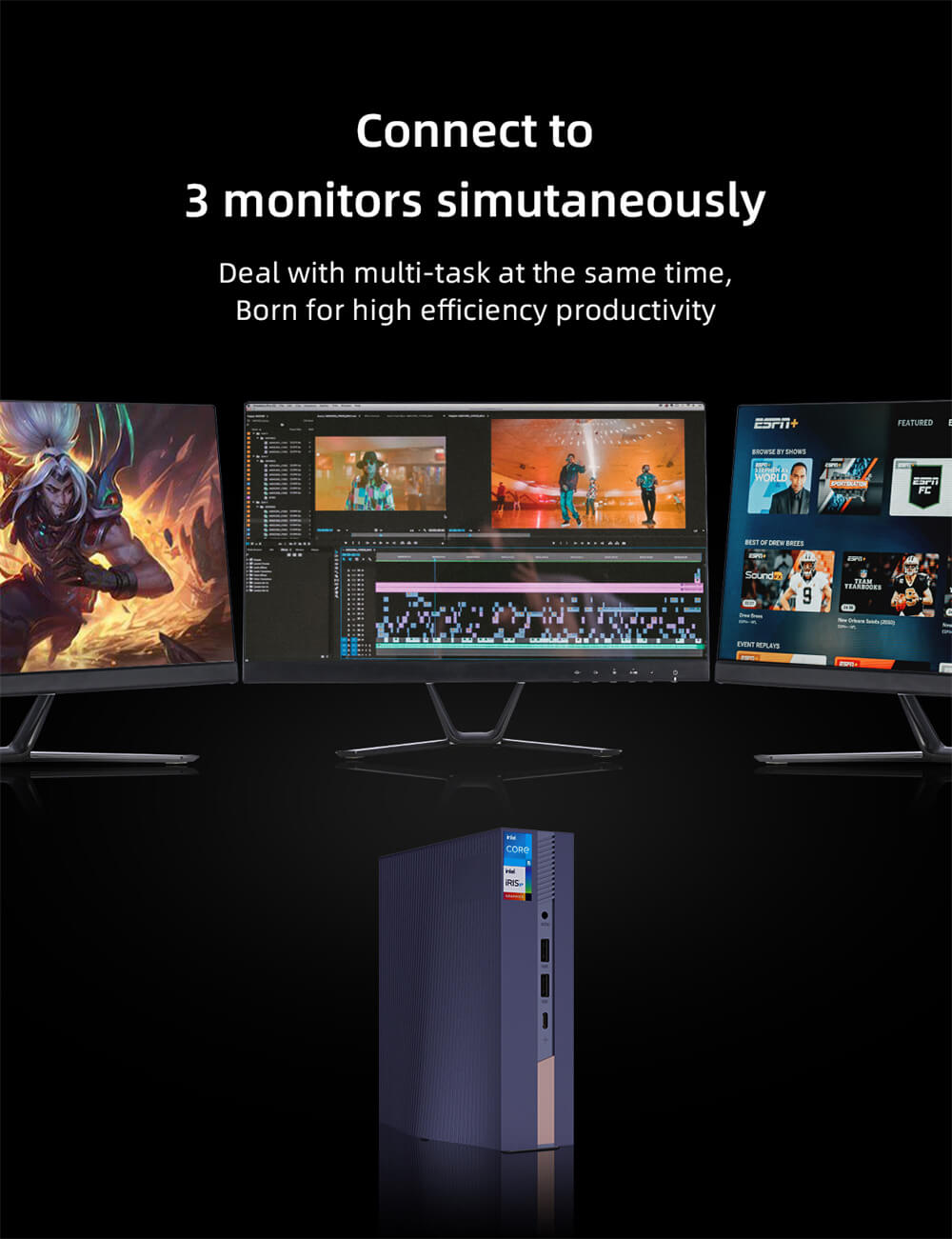

| Multi-screen output | Video output | support HDMI*2+Type C triple display | |
| LED | status indicator | white is the boot light | |
| Network | |||
| Type | Features | Description | Optional |
| WIFI | Type | M.2 E_key | Optional |
| Agreement | wifi 802.11 a, b/g, n, ac/ax （wifi 6 BT5.2） | ||
| Bluetooth | Type | M.2 E_key | Optional |
| Agreement | Support Bluetooth 5.2 | ||
| 3G | build-in | No | |
| 4G | build-in | No | |
| Ethernet | LAN1 | 10M/100M/1000M self-adaption | |

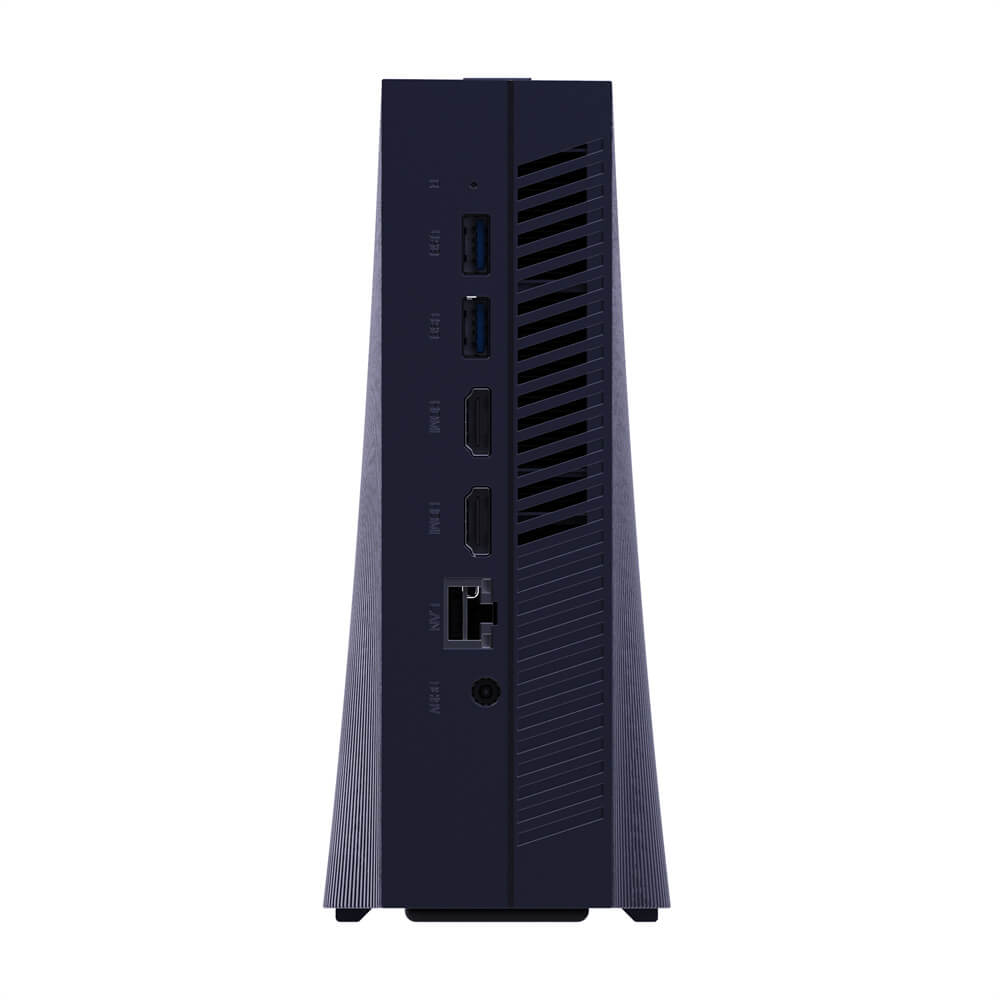

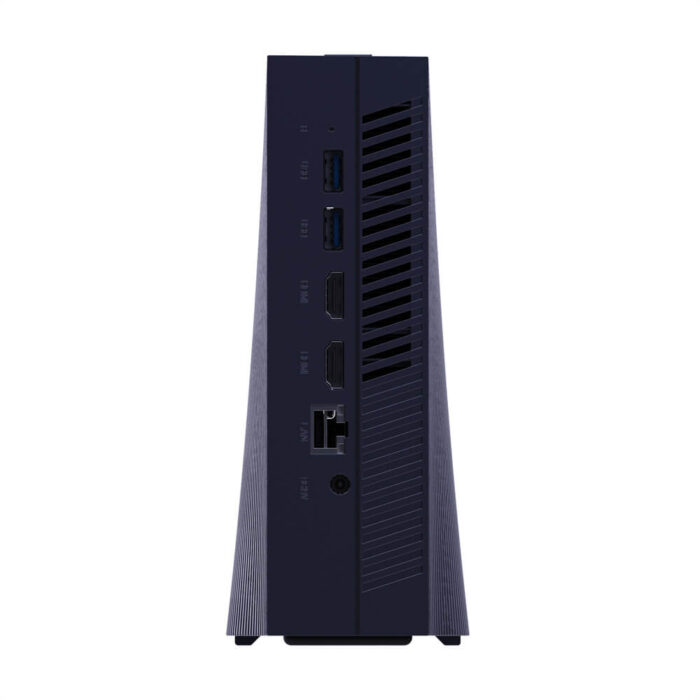

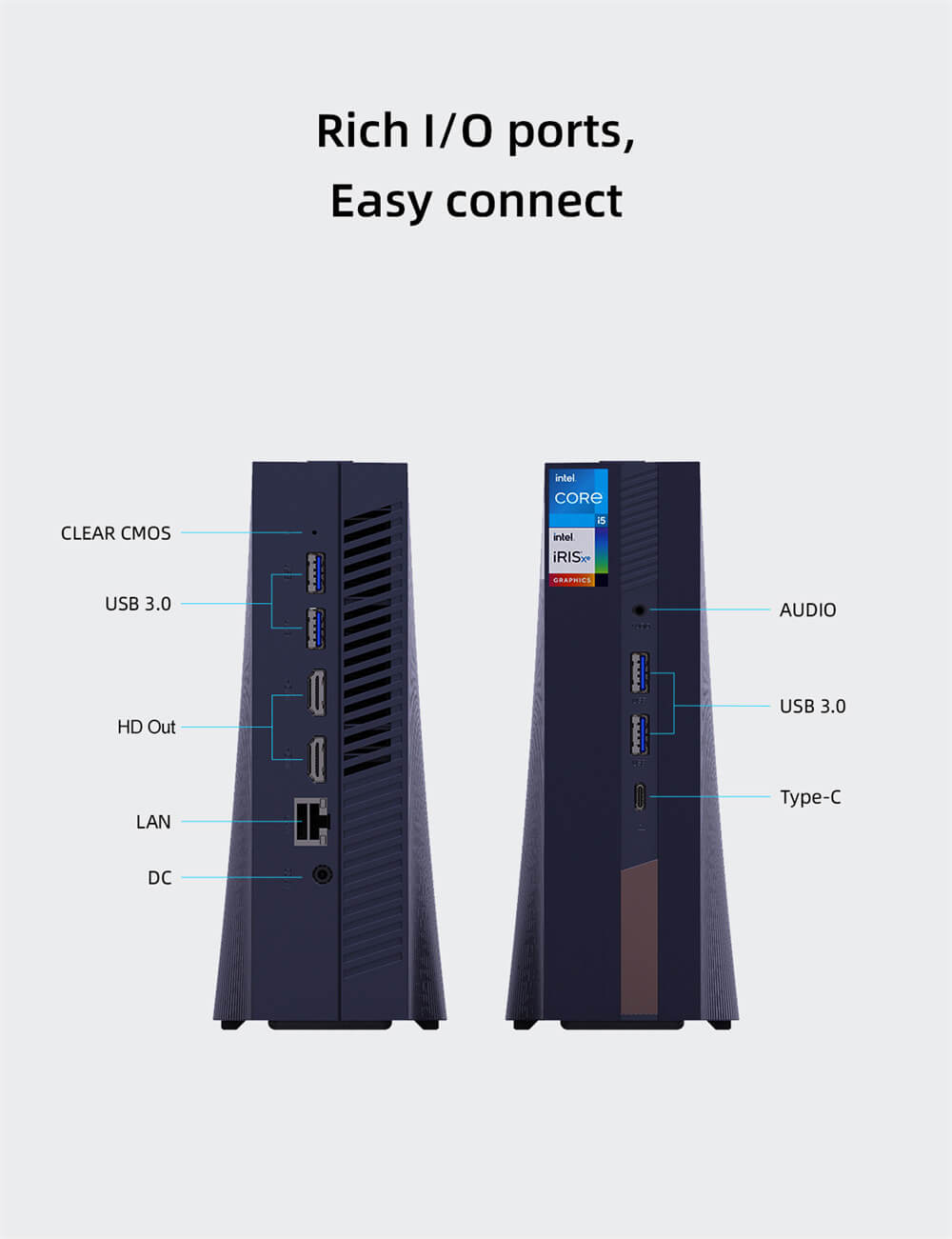

| Ports | |||
| Type | Features | Description | Optional |
| USB | USB3.0 | USB3.0*4 | |
| TF | expand external memory | NO | |
| HDMI | Audio/Video output | HDMI 2.0*2 | |
| DP | Audio output | NO | |
| RJ45 | Gbe | RJ45 x1 | |
| Type C | Full Function | Data transfer/video output/audio output | |
| POWER | power | x1 | |
| DC IN | DC IN | 5.5*2.1mm DC Jack x1 19V/6.3A | |
| Audio-in/out | Audio-in/out | 3.5mm Phone Jack x1 | |
| Antenna1 | FPC | WiFi+BT | |
| Software configuration | |||
| Type | Features | Description | Optional |
| OS | OS version | Win10 pro/Win11 Pro/ Ubuntu | |
| Applied environment | |||
| Type | Features | Description | Optional |
| Environment | operating temperature | 0~40℃ | |
| storage temperature | -20~60℃ | ||
| humidity | 90% @ 40 °C (without condensation) | ||
| Accessories | |||
| Type | Features | Description | Optional |
| Adapter | Plug type | input100~240V 50/60Hz,output 19V/6.3A DC 5.5*2.1mm | |
| IR remote control | No | ||
| Weight | 3 kg |
|---|---|
| Dimensions | 25 × 20 × 15 cm |
| CPU | Intel i5-12450H |
| DDR/SSD | 0GB/0GB, 8GB/256GB, 16GB/512GB, 32GB/1T |
| Power Adapter | US, EU, UK, AU |
