6 TOPS NPU M9 Rockchip RK3576 Octa Core 4K 120Hz 8GB RAM 128GB ROM Android 14 TV Box

$102.00$142.00

Specifications:

  • Model: H96 Max M9
  • OS: Android 14.0
  • CPU: Rockchip RK3576 8-Core
  • GPU: ARM Mali G52 MC3 GPU
  • RAM: 2GB/4GB/8GB
  • ROM: 16GB/32GB/128GB EMMC Flash
  • HDMI Output: HDMI 2.1, 4K@120Hz
  • WiFi: 2.4G+5G Dual band, WLAN802.11ax, WiFi6+BT5.4
  • Ethernet: 1000M Gigabit RJ45 LAN
  • USB: 1x USB 3.0, 1x USB 2.0
  • Application: Ai, Edge Computing, game playing, smart home
SKU: UBM9 Category: Tags: ,

Description

6 TOPS NPU M9 Rockchip RK3576 Octa Core 4K 120Hz 8GB RAM 128GB ROM Android 14 TV Box

H96 Max M9 Android TV Box with Rockchip RK3576 Octa Core CPU, Android 14.0 OS, support 4K@120Hz, 6TOPS NPU, with its high performance ideal for Ai , adge computing, industrial use, game playing , smart home, etc.

h96 max m9 ai smart tv box
m9 s928x octa core tv box
m9 rk3576 android 14 tv box
m9 rk3576 tv ai box with wifi6
h96 max m9 android tv box

Parameters:

Hardware
CPUQuad Cortex A72 + Quad Cortex A53
GPUARM Mali G52 MC3 GPU
Memory2GB/4GB/8GB
Flash16GB/32GB/64GB/128GB
WiFiWLAN 802.11a/b/g/n/ax
BTBT 5.4

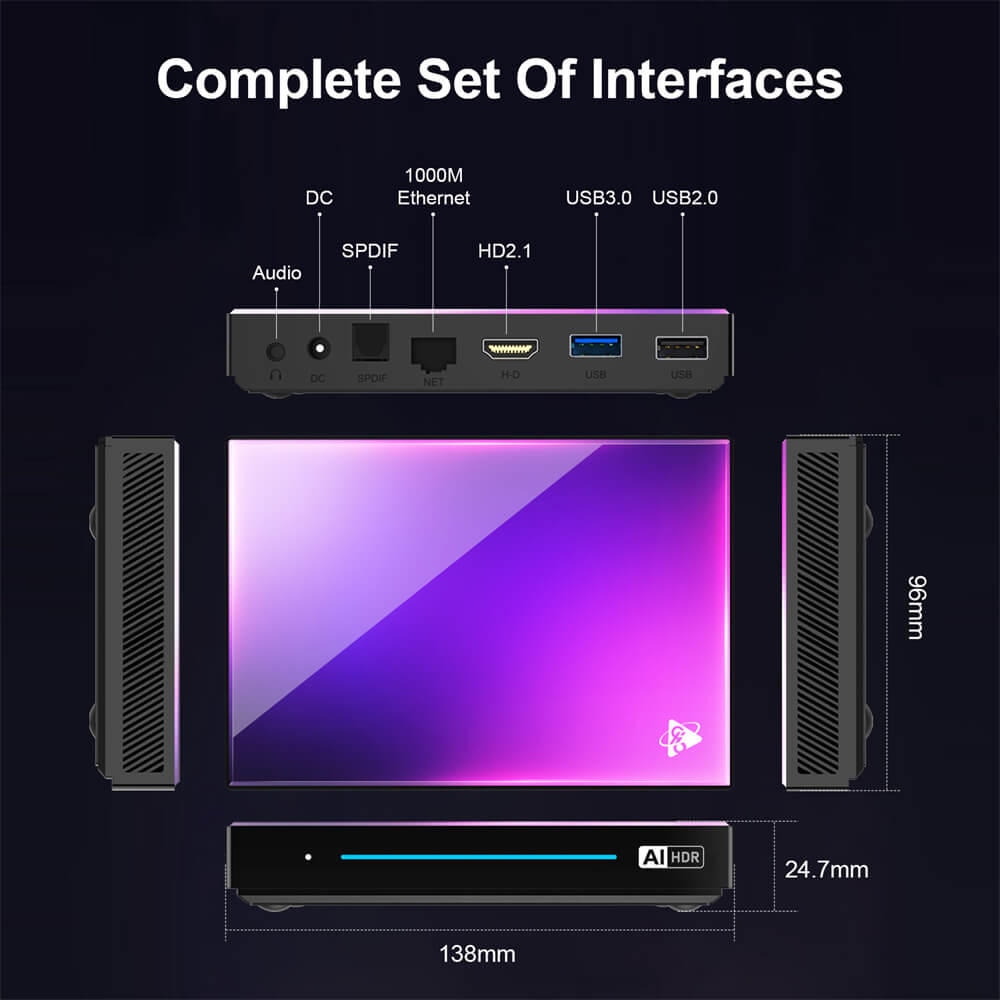

I/O1*HDsupport up to 4K@120fps
2*USB1*USB3.0 and 1*USB2.0
1*DC5V/2A
1*audio outaudio out
LANEthernet:1000 standard RJ-45
SPDIFsupport
Software
OSAndroid 14.0
Video·Video Decoder Supports video decoder of H.264,H.265,VP9, AV1 and AVS2
Supports MMU
Supports multi-stream decoding in paralle
H.264/AVC main10 L5.2 up to 4K@60fps
H.265/HEVC main10 L6.0 up to 8K@30fps or 4K@120fps
VP9 profile 0/2 L6.0 up to 8K@30fps or 4K@120fps
AVS2 profile 0/2 L8.2.120 up to 8K@30fps or 4K@120fps
AV1 main10 L6.0 up to 8K@30fps or 4K@120fps
H264 MVC is up to 4K@60fps
·Video Encoder Supports H.265 and H.264
Supports up to 4K@60fps
Supports multi-stream encoding
·JPEG decoder Supports image size is from 48×48 to 65520×65520
Supports MIPG up to 4K@60fps
Supports YUV400/YUV411/YUV420/YUV422/YUV440/YUV444
·HD  HDMI V2.1
Supports up to 4k@120Hz
Output data format: RGB/YUV444/YUV422/YUV420 8/10-bit
Support CEC(Consumer Electronic Control) and ARC (Audio Return Channel)
AudioSupports MP3, AAC, WMA, RM, FLAC
ImageHD JPEG、BMP、GIF、PNG、TIF
LanguageMulti-Language
Appliactions
OnlineBrowse all video websites,support Netflix,Hulu,Flixster, Youtube, etc.
AppsApps download freely form android market, amazon app store etc.
MediumLocal Media playback, Support HDD, U Disk
Talk onlineSupport SKYPE video call, MSN, facebook, twitter, QQ, etc
OthersSupport Email, office suit etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard

Additional information

Weight1 kg
Dimensions22 × 18 × 8 cm
RAM/ROM

2GB/16GB, 4GB/32GB, 8GB/128GB
